Build + CI/CD

CI/CD Process based on Github Actions

In a Nutshell …​.

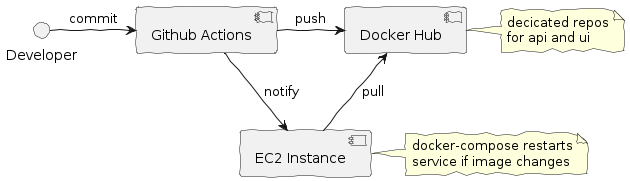

PlantUML Test

Github Actions

Checklist

  • api Gradle Build with Docker Push

  • ui Angular Build with Docker Push

  • docs Antora build

  • docs Deploy to S3 Bucket

  • for all modules: trigger redeploy on new build

There is a lot to do!

Post Action Webhook

Workflow Webhook Action A Github workflow action to call (POST) a remote webhook endpoint with a json payload

  - name: Invoke deployment hook
    uses: distributhor/workflow-webhook@v1
    env:
      webhook_url: ${{ secrets.WEBHOOK_URL }}
      webhook_secret: ${{ secrets.WEBHOOK_SECRET }}
      data: '{ "module": "api", "drink" : "milk" }'

Tip: The hash signature is identical to that which a regular Github webhook would generate, and sent in a header field named X-Hub-Signature.

if __name__ == '__main__':
    app.run(host="0.0.0.0", port=8080, ssl_context=('/etc/letsencrypt/live/domain.io/fullchain.pem', '/etc/letsencrypt/live/domain.io/privkey.pem'))

Angkor Development CLI

The entire project uses GNU Make on top level to manage the various ecosystems for our different modules. The Makefile documents itself when make is called without arguments (inspired by Self-Documented Makefile)

Output of all documented make targets
$ make
  api-clean            Cleans up ./api/build folder
  api-build            Assembles backend jar in ./api/build with gradle (alias: assemble)
  api-run              Runs springBoot API in ./api using gradle bootRun (alias: bootrun)
  api-deploy           Deploys API with subsequent pull and restart of server on EC2

  ui-clean             Remove UI dist folder ./ui/dist
  ui-build             Run ng build  in ./ui
  ui-build-prod        Run ng build --prod in ./ui
  ui-run               Run UI with ng serve and opens UI in browser (alias: serve,open)
  ui-deploy            Deploys UI with subsequent pull and restart of server on EC2
  ui-mocks             Run json-server on foreground to mock API services for UI (alias: mock)

  infra-init           Runs terraform init on working directory ./infra
  infra-plan           Runs terraform plan with implicit init and fmt (alias: plan)
  infra-deploy         Runs terraform apply with auto-approval (alias: apply)

  ec2-stop             Stops the ec2 instance (alias: stop)
  ec2-start            Launches the ec-2instamce (alias: start)
  ec2-status           Get ec2 instance status (alias: status)
  ec2-ps               Run docker compose status on instance (alias: ps)
  ec2-login            Exec ssh login into current instance (alias: ssh)
  ec2-pull             Pull recent config on server, triggers docker-compose up (alias: pull)

  docs-clean           Cleanup docs build directory
  docs-build           Generate documentation site using antora-playbook.yml (alias: docs)
  docs-push            Generate documentation site and push to s3
  docs-deploy          Deploys docs with subsequent pull and restart of server on EC2

  all-clean            Clean up build artifact directories in backend and frontend (alias: clean)
  all-build            Builds frontend and backend (alias: build)
  all-deploy           builds and deploys frontend and backend images (alias deploy)

  angkor               The ultimate target - builds and deploys everything 🦄----
